Enabling Emergency Communications Indoors

Who

Who is Avari   Wireless?

®

Avari® Wireless designs and manufactures public safety (PS) Digital Distributed Antenna Systems (DAS) for Emergency Responder Communications Enhancement Systems (ERCES).

​

Being able to communicate with wireless public safety two-way radio systems indoors is crucial for first responders to execute time-sensitive and mission-critical tasks to protect the public. Unfortunately, this is not always possible due to building materials that may weaken or block out wireless signals. An ERCES is often installed to provide these necessary means of communication.

​

The Avari VL Series solution is perfectly suited for medium to large complex mission-critical in-building communication deployments. It can overcome common and difficult challenges that are often present in these expansive deployments. The system supports all public safety LMR frequency bands, can work with technology inside, or outside of the building, and is future-proof.

​

Avari is steadfast in its mission to create the most reliable and advanced ERCES system to protect our first responders and the public alike.

Fire Fighter Silhouette in Smokey Room _edited.jpg

Experts in Medium to Large Complex Deployments

Key Challenges Avari   VL™ Can Overcome

®

1

Physical size, complexity, & distance

2

Fiber availability & flexibility

3

Multiservice & content aggregation

4

Reliability & redundancy

5

Scalability & future readiness

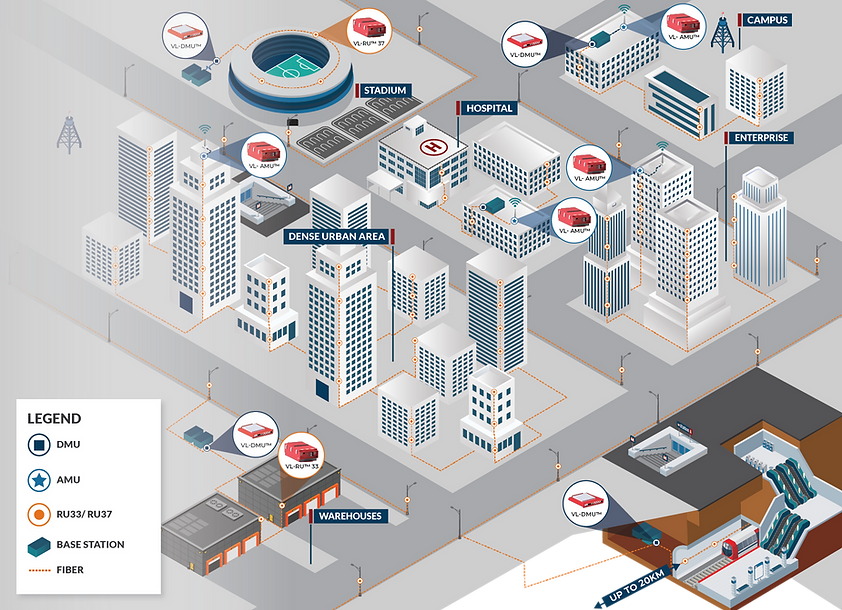

Avari_Wireless-DAS Deployment.png

What sets Avari’s VL™ Series Solution Apart?

About Avari

Long reach with no loss of signal quality

Channelized operation with advanced software-configurable digital filters (64 channels)

Automatic digital gain control with squelch to ensure best audio quality

Oscillation detection and suppression

No off-air BDA required

Flexible NFPA alarm connections to local and centralized fire alarm panels over existing fiber

1 Gbps Ethernet backhaul over fiber

System redundancy with self-healing capability

Flexible deployment topology with star and daisy-chain configurations

Multi-band support with high power output per band

Intelligent system control with fault analyzer

The Avari   VL™ Series Product Family

®

Public Safety Modular Digital DAS
VL Element Manager.png
VL-EM™

Avari VL™ Element Manager

  • Centralized control and management

  • Easy to use graphical interface

  • Built-in web server

  • 3 x 1 Gbps Ethernet interface

​

System Controller

Centralizes, integrates, and streamlines the management and control of the entire network.  Intelligently re-routes channel traffic based on analysis of faults detected.

VL-DMU™

Avari VL™ Direct Master Unit

​

  • Base Station interface

  • All standards (P25, TETRA, LTE, GSM-R)

  • Modular RF sections (up to 4 bands)

  • 8 optical interfaces

  • Redundancy configurations

  • 2 x 1 Gbps Ethernet interface

  • IP66/NEMA 4 | NFPA compliant



Connects to signal source

Interfaces with Base Stations (BTS) or existing Bi-Directional Amplifiers (BDA) over analog radio frequency (RF).


Converts signals from analog RF to digital data packets and intelligently routes the digital signals through the digital distribution unit (VL-DU™) or directly to the remotes. Processes up to 3 public safety RF bands simultaneously.

VL-RU 33 37.png
VL-AMU™ 33/37

Avari VL™ Air Master Unit

  • Off-air interface

  • Channelized class A operation

  • Modular RF sections (1 - 3 bands)

  • 2/5W per band uplink

  • All standards (P25, TETRA, LTE )

  • 8 optical interfaces

  • Redundancy configurations

  • 2 x 1 Gbps Ethernet interface

  • IP66/NEMA 4 | NFPA compliant



Connects to off-air signal source

Provides off-air interfacing to public safety donor base stations in a 1-3 band headend unit. Filters and amplifies RF signals to a composite power of up to 2W per band or 5W per band.

VL-Distrubution Unit.png
VL-DU™ 8/14
  • Digital distribution unit

  • Small form factor

  • 8/14 optical interfaces

  • 2 x 1 Gbps Ethernet interface

  • IP66/NEMA 4 | NFPA compliant

​​

Digital aggregation / distribution

Avari VL™ Distribution Unit

Receives digital data streams over fiber from one or more host units and re-distributes the data to multiple remote units. It can also be cascaded in a multi-layer configuration for distributing to a large network of remote units.

VL-RU 33 37.png
VL-RU™ 33/37
  • Channelized class A operation

  • Modular RF sections | 1 - 3 bands

  • 2/5 watt per band downlink

  • All standards (P25, TETRA, LTE ...)

  • Dual-fiber fed with failover operation

  • 2/4 optical interfaces

  • 2 x 1 Gbps Ethernet interface

  • IP66/NEMA 4 | NFPA compliant â€‹

  • For indoor and outdoor

Avari VL™ Remote Unit

Processes up to 3 bands simultaneously. Has field upgradeable RF band modules with RF output power of 2W or 5W per band.



Bands: VHF, UHF, 700, 800, 900 MHz

VL Clock.png
VL-DMU™

Avari VL™ Direct Master Unit

​

  • Base Station interface

  • All standards (P25, TETRA, LTE, GSM-R ...)

  • Modular RF sections (up to 4 bands)

  • 8 optical interfaces

  • Redundancy configurations

  • 2 x 1 Gbps Ethernet interface

  • IP66/NEMA 4 | NFPA compliant



Connects to signal source

Interfaces with Base Stations (BTS) or existing Bi-Directional Amplifiers (BDA) over analog radio frequency (RF).


Converts signals from analog RF to digital data packets and intelligently routes the digital signals through the digital distribution unit (VL-DU™) or directly to the remotes. Processes up to 3 public safety RF bands simultaneously.

VL-CLK™
  • 4 x 10 Gbps optical interfaces

  • 2 x 1 Gbps Ethernet interfaces

  • Built-in 10 MHz clock reference over fiber

  • Supports redundant clock source

  • Utilizes standard plug and play SFP+ optical transceivers

  • NEMA4 or Non-NEMA4 versions are available

  • FCC, UL compliant

Avari VL™ Clock

Built-in 10MHz clock reference signal that is used to feed the same clock reference signal to two separate VL-DMU™ / VL-AMU™ units over fiber in a redundant head-end configuration.  In order for automatic fail-over protection to work, the two hosts at the headend locations must be synchronized with the same clock reference.
